Contact automatic counting packaging solution

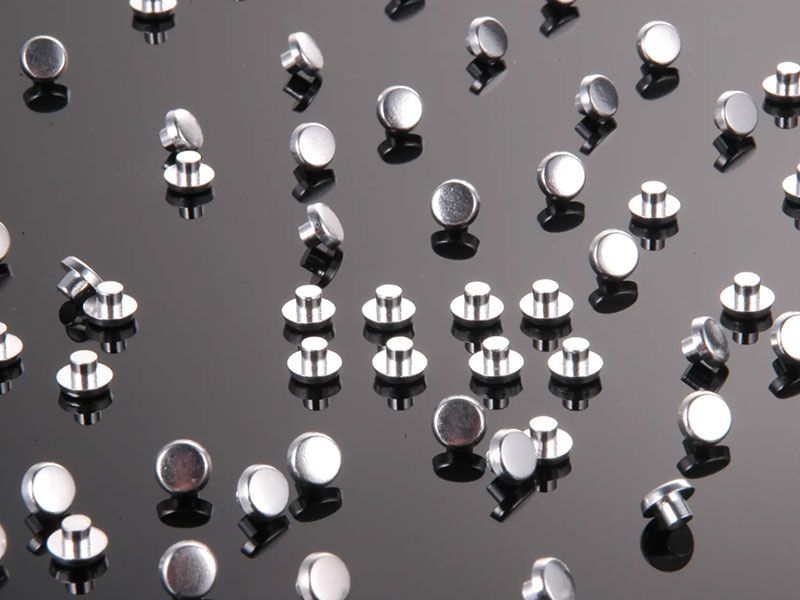

Contacts are the intersection points where electronic appliances are separated and contacted when they are switched on and off. In order to prevent the contact from burning out due to excessive instantaneous temperature and oxidation and electrolysis due to excessive frequency of use, the general contact materials are copper and silver. Therefore, the price of contact is relatively high, and the packaging needs to be carried out according to the quantity when producing packaging, which makes many contact manufacturers find it difficult.

In order for the contacts to accurately counting and packaging, they also need to be protected from scratches, because copper and silver are soft and are easily scratched and damaged. Our automatic counting and packaging machine has made special processing for contact counting and packaging.

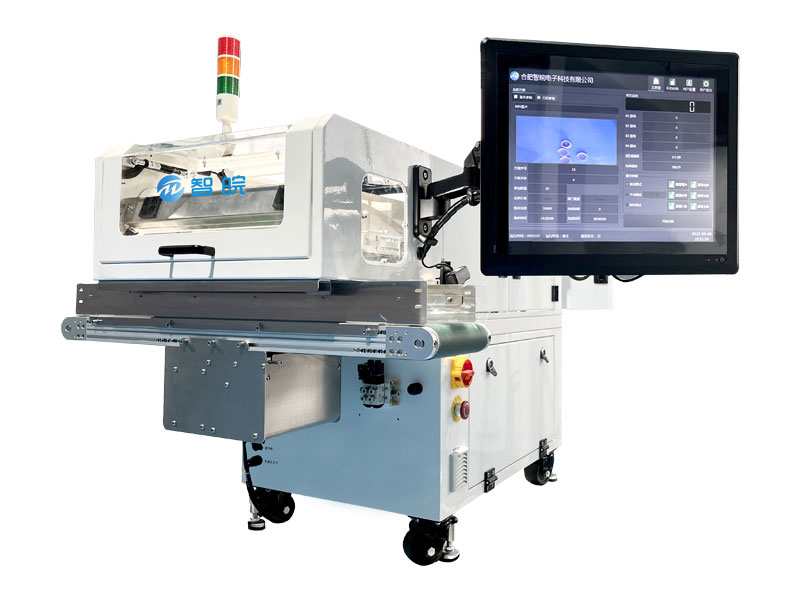

1.The use of CCD vision recognition quantity, with a unique mechanical structure and control system, to achieve accurate quantitative counting, to achieve the purpose of accurate counting according to the number.

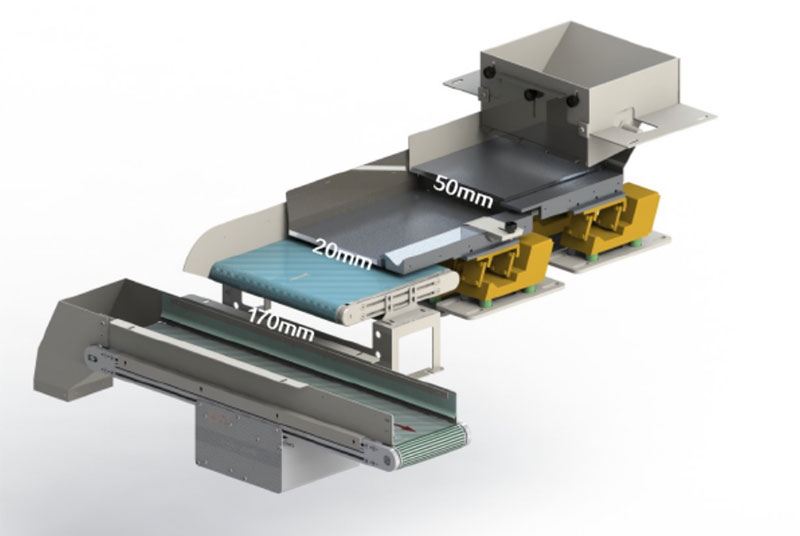

2.Using vibration feeder + belt mode of low drop model, the whole drop is very low, effectively protect the material to prevent damage.

3.The vibration feeder is made of nylon material, the belt is PU material, effectively protect the contact to prevent scratches.

4.Packaging machine with vacuum function. Prevent scratches caused by friction between materials during transportation.
5. Thick and soft belt is used for conveying finished products to prevent damage.
6. With the over count discharge function, if it exceeds the standard, the transverse belt will automatically rotate to the other side of the packaging machine and send the material to the return box.
