Insulin pen needles Vision Counting and Packaging Solution

2024-12-31

Insulin pen needles Vision Counting and Packaging Solution

Recently, a set of insulin pen needle vision counting and packaging system ordered by a customer completed debugging and acceptance. This system includes: Feeding elevator, Vision counting machine, Packaging machine, Finished products conveyor, Recheck scale, and Rejection mechanism.

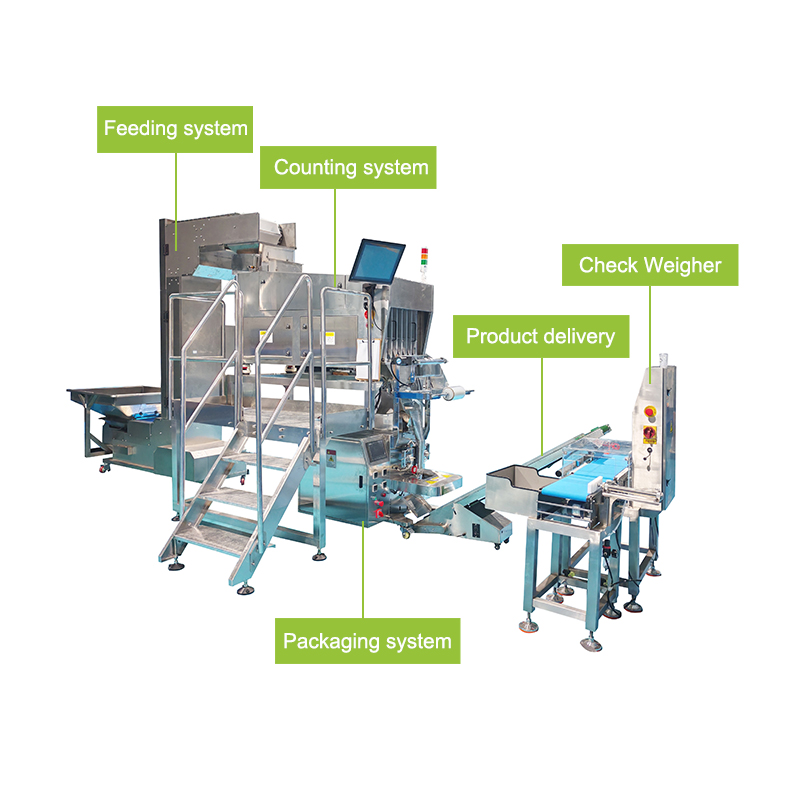

Insulin Pen Needles Vision Counting And Packaging Machine

The workflow of the complete system:
The product is dumped into the elevator hopper, transported to the counting machine through vibration and bucket lifting, dispersed by multi-stage vibration plate, identified and counted by high-speed industrial camera, and accurately batch counted with multi-level gates. The counted product falls into the packaging machine for bagging and sealing and then falls to the finished product conveyor and is transported to the re-inspection scale belt. When passing the recheck scale, if the weight is lower or higher than the set weight, the push rod pushes the unqualified products to the recycling bin.

The advantage of the complete system:
1. Achieve full automation and packaging according to quantity. The quantity is identified by the camera, and it is not affected by the weight difference of individual products, which may cause inaccurate quantity.
2. The precision of finished products is very high: the precision of vision counting can reach 99.99%, and there is no negative error, that is, there will be no shortage of materials in the finished products. In addition, a recheck salce and rejection mechanism is added to remove the bag that has the broken products(the insulin pen needle is a combined product, which is not firmly assembled during assembly and causes it to spread, resulting in differences in the weight of damaged products). Vision counting + recheck mechanism, "double insurance" to ensure the precision of finished products.

The efficiency of the whole system: 7 pcs/pack, 40 packs of finished products can be packed per minute.
The precision of finished products can reach: 99.99%

The whole system operation video:

Insulin pen needles Vision Counting and Packaging Solution
